过滤器查询结果请看右侧列表
产品系列点击系列名称/规格书，查看相关型号信息
| 系列名称 | 产品图片 | 功率(W) | 输入电压(VDC) | 输出电压(VDC) | 封装形式 | 隔离电压 | 封装尺寸(mm) | 产品资料 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|
| VB6-xxDxxMP |  |
6 | 9～72 | ±5,±9,±12,±15,±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24D05MP |  |
6 | 9～36 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24D09MP | |
6 | 9～36 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24D12MP | |
6 | 9～36 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24D15MP | |
6 | 9～36 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24D24MP | |
6 | 9～36 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48D05MP | |
6 | 18～72 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48D09MP | |
6 | 18～72 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48D12MP | |
6 | 18～72 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48D15MP | |
6 | 18～72 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48D24MP | |
6 | 18～72 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||

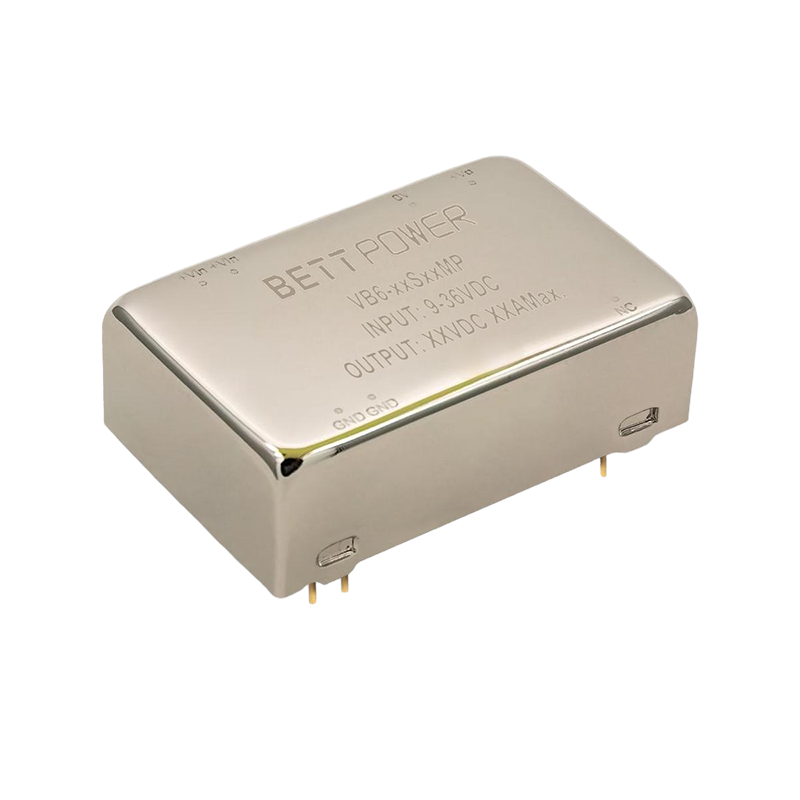

| VB6-xxSxxMP |  |
6 | 9～72 | 3.3,5,9,12,15,24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S03MP |  |
6 | 9～36 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S03MP | |
6 | 18～72 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S05MP | |
6 | 9～36 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S05MP | |
6 | 18～72 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S09MP | |
6 | 9～36 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S09MP | |
6 | 18～72 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S12MP | |
6 | 9～36 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S12MP | |
6 | 18～72 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S15MP | |
6 | 9～36 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S15MP | |
6 | 18～72 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-24S24MP | |
6 | 9～36 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB6-48S24MP | |
6 | 18～72 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-xxDxxMP |  |
6 | 4.5～72 | ±5,±9,±12,±15,±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05D05MP |  |
6 | 4.5～9 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05D09MP | |
6 | 4.5～9 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05D12MP | |
6 | 4.5～9 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05D15MP | |
6 | 4.5～9 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05D24MP | |
6 | 4.5～9 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12D05MP | |
6 | 9～18 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12D09MP | |
6 | 9～18 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12D12MP | |
6 | 9～18 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12D15MP | |
6 | 9～18 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12D24MP | |
6 | 9～18 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24D05MP | |
6 | 18～36 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24D09MP | |
6 | 18～36 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24D12MP | |
6 | 18～36 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24D15MP | |
6 | 18～36 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24D24MP | |
6 | 18～36 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48D05MP | |
6 | 36～72 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48D09MP | |
6 | 36～72 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48D12MP | |
6 | 36～72 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48D15MP | |
6 | 36～72 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48D24MP | |
6 | 36～72 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-xxSxxMP |  |
6 | 4.5～72 | 3.3,5,9,12,15,24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S03MP |  |
6 | 4.5～9 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S03MP | |
6 | 9～18 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S03MP | |
6 | 18～36 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S03MP | |
6 | 36～72 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S05MP | |
6 | 4.5～9 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S05MP | |
6 | 9～18 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S05MP | |
6 | 18～36 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S05MP | |
6 | 36～72 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S09MP | |
6 | 4.5～9 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S09MP | |
6 | 9～18 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S09MP | |
6 | 18～36 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S09MP | |
6 | 36～72 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S12MP | |
6 | 4.5～9 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S12MP | |
6 | 9～18 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S12MP | |
6 | 18～36 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S12MP | |
6 | 36～72 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S15MP | |
6 | 4.5～9 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S15MP | |
6 | 9～18 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S15MP | |
6 | 18～36 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S15MP | |
6 | 36～72 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-05S24MP | |
6 | 4.5～9 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-12S24MP | |
6 | 9～18 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-24S24MP | |
6 | 18～36 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| WB6-48S24MP | |
6 | 36～72 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||

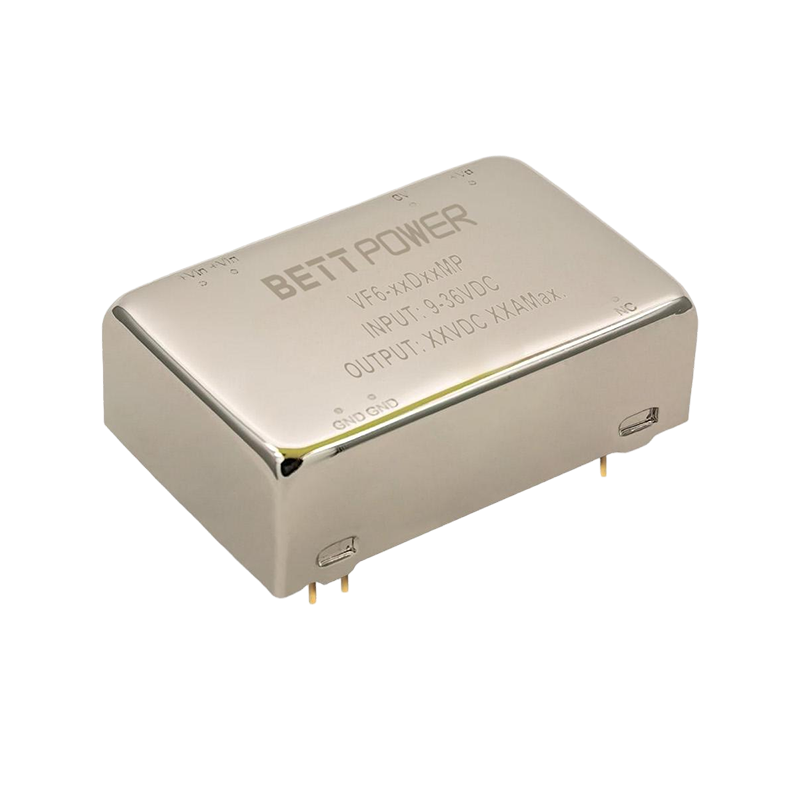

| VF6-xxDxxMP |  |
6 | 9～72 | ±5,±9,±12,±15,±24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24D05MP |  |
6 | 9～36 | ±5 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24D09MP | |
6 | 9～36 | ±9 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24D12MP | |
6 | 9～36 | ±12 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24D15MP | |
6 | 9～36 | ±15 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24D24MP | |
6 | 9～36 | ±24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48D05MP | |
6 | 18～72 | ±5 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48D09MP | |
6 | 18～72 | ±9 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48D12MP | |
6 | 18～72 | ±12 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48D15MP | |
6 | 18～72 | ±15 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48D24MP | |
6 | 18～72 | ±24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||

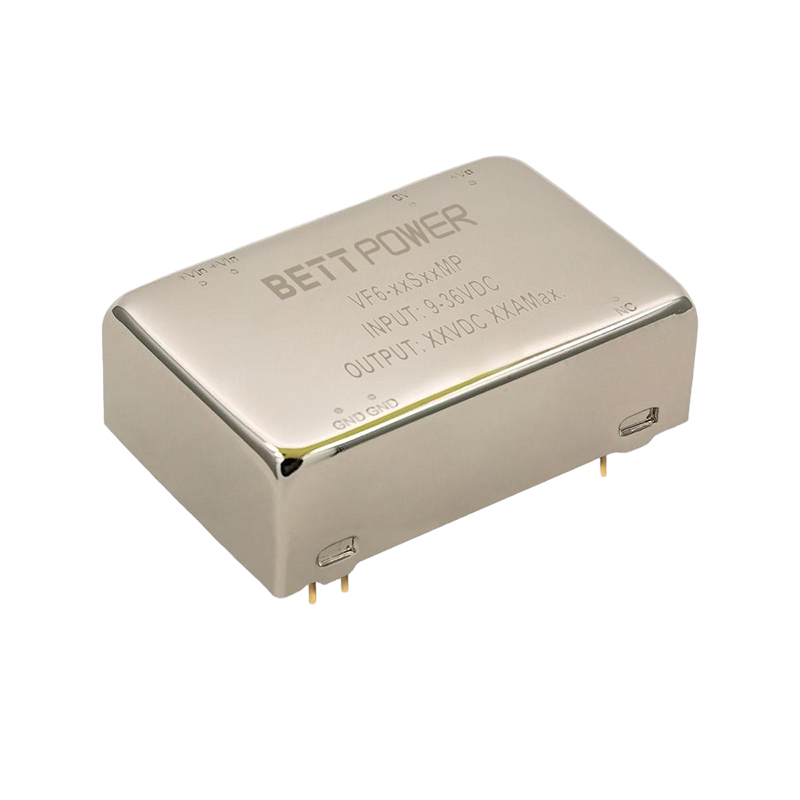

| VF6-xxSxxMP |  |
6 | 9～72 | 3.3,5,9,12,15,24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S03MP |  |
6 | 9～36 | 3.3 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S03MP | |
6 | 18～72 | 3.3 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S05MP | |
6 | 9～36 | 5 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S05MP | |
6 | 18～72 | 5 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S09MP | |
6 | 9～36 | 9 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S09MP | |
6 | 18～72 | 9 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S12MP | |
6 | 9～36 | 12 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S12MP | |
6 | 18～72 | 12 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S15MP | |
6 | 9～36 | 15 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S15MP | |
6 | 18～72 | 15 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-24S24MP | |
6 | 9～36 | 24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||
| VF6-48S24MP | |
6 | 18～72 | 24 | DIP24 | 3000VDC | 31.80 * 20.32 * 10.20 | ||

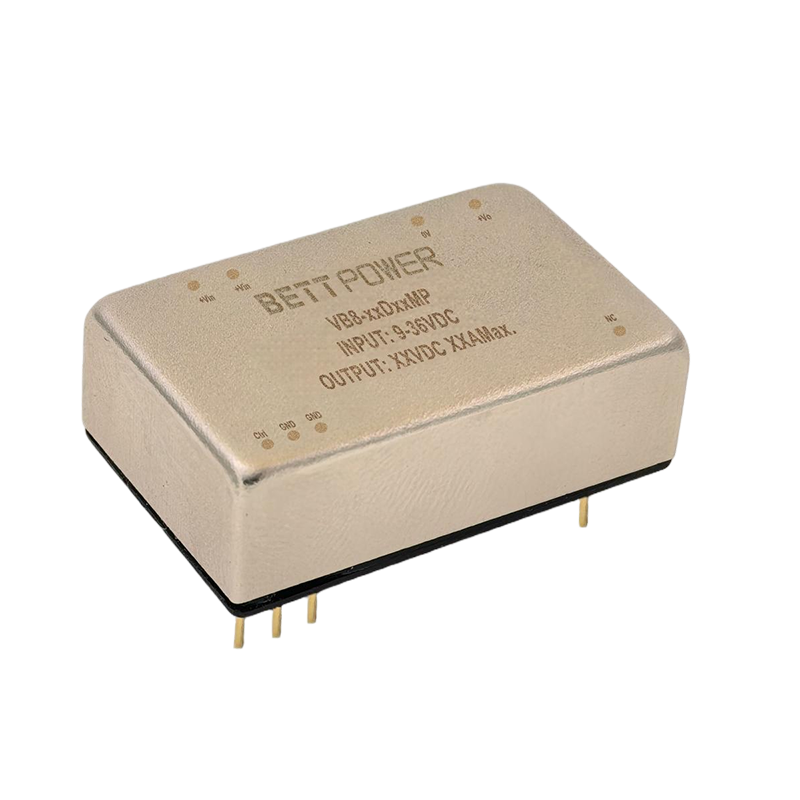

| VB8-xxDxxMP |  |
8 | 9～72 | ±5,±9,±12,±15,±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24D05MP |  |
8 | 9～36 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24D09MP | |
8 | 9～36 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24D12MP | |
8 | 9～36 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24D15MP | |
8 | 9～36 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24D24MP | |
8 | 9～36 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48D05MP | |
8 | 18～72 | ±5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48D09MP | |
8 | 18～72 | ±9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48D12MP | |
8 | 18～72 | ±12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48D15MP | |
8 | 18～72 | ±15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48D24MP | |
8 | 18～72 | ±24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||

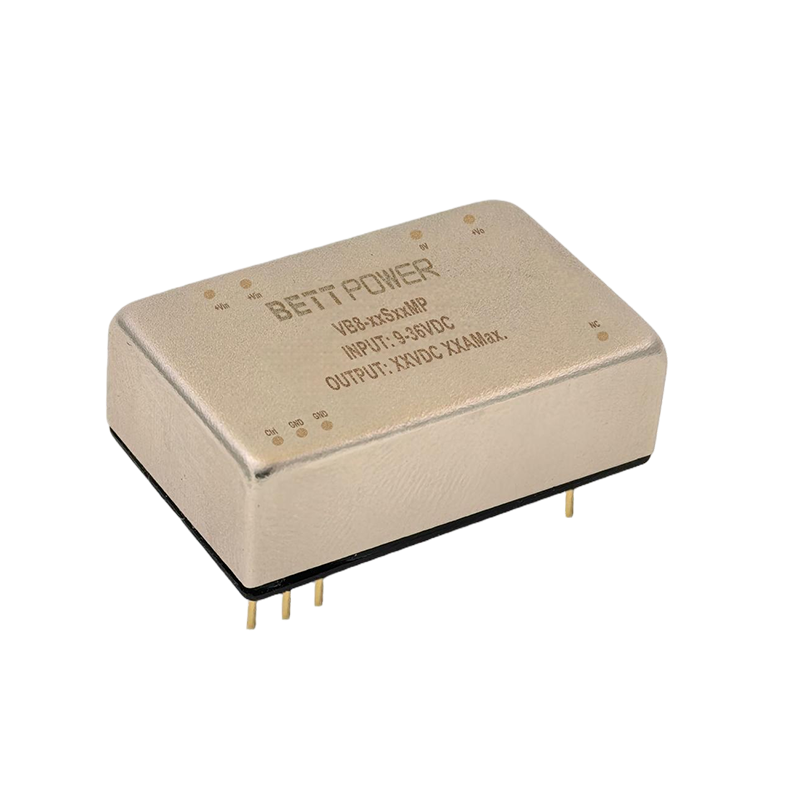

| VB8-xxSxxMP |  |
8 | 9～72 | 3.3,5,9,12,15,24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S03MP |  |
8 | 9～36 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S03MP | |
8 | 18～72 | 3.3 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S05MP | |
8 | 9～36 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S05MP | |
8 | 18～72 | 5 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S09MP | |
8 | 9～36 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S09MP | |
8 | 18～72 | 9 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S12MP | |
8 | 9～36 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S12MP | |
8 | 18～72 | 12 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S15MP | |
8 | 9～36 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S15MP | |
8 | 18～72 | 15 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-24S24MP | |
8 | 9～36 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 | ||
| VB8-48S24MP | |
8 | 18～72 | 24 | DIP24 | 1500VDC | 31.80 * 20.32 * 10.20 |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
