非隔离N78系列(500-2000mA)_工业电源_电源模块_钡特电源BETTPOWER

过滤器查询结果请看右侧列表

最大电流 (mA)：

输入电压(VDC)：

输出电压(VDC)：

封装形式：

封装尺寸(mm)：

产品系列点击系列名称/规格书，查看相关型号信息

系列名称	最大电流 (mA)	输入电压(VDC)	输出电压(VDC)	封装形式	封装尺寸(mm)
▶ N78Uxx-500	500	9～90	3.3,5,6.5,9,12,15,24	SIP3	11.50 * 9.00 * 17.50
N78U03-500	500	9～90	3.3	SIP3	11.50 * 9.00 * 17.50
N78U05-500	500	9～90	5	SIP3	11.50 * 9.00 * 17.50
N78UX6-500	500	9～90	6.5	SIP3	11.50 * 9.00 * 17.50
N78U09-500	500	14～90	9	SIP3	11.50 * 9.00 * 17.50
N78U12-500	500	18～90	12	SIP3	11.50 * 9.00 * 17.50
N78U15-500	500	20～90	15	SIP3	11.50 * 9.00 * 17.50
N78U24-300	300	36～90	24	SIP3	11.50 * 9.00 * 17.50

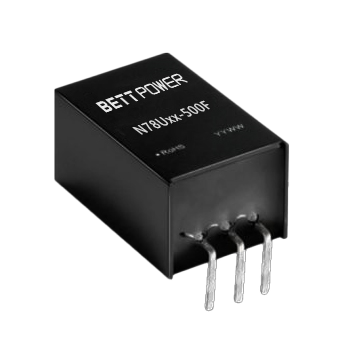

▶ N78Uxx-500F	500	9～90	3.3,5,6.5,9,12,15,24	SIP3	19.00 * 11.50 * 9.00
N78U03-500F	500	9～90	3.3	SIP3	19.00 * 11.50 * 9.00
N78U05-500F	500	9～90	5	SIP3	19.00 * 11.50 * 9.00
N78UX6-500F	500	9～90	6.5	SIP3	19.00 * 11.50 * 9.00
N78U09-500F	500	14～90	9	SIP3	19.00 * 11.50 * 9.00
N78U12-500F	500	18～90	12	SIP3	19.00 * 11.50 * 9.00
N78U15-500F	500	20～90	15	SIP3	19.00 * 11.50 * 9.00
N78U24-300F	300	36～90	24	SIP3	19.00 * 11.50 * 9.00

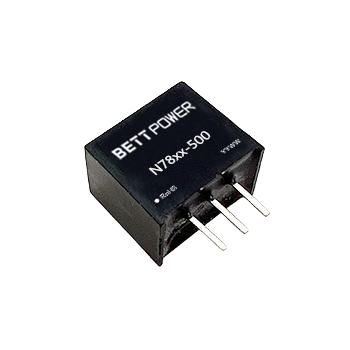

▶ N78xx-500	500	4.75～36	3.3,5,9,12,15	SIP3	11.60 * 10.16 * 7.55
N7803-500	500	4.75-36	3.3	SIP3	11.60 * 10.16 * 7.55
N7805-500	500	6.5-36	5	SIP3	11.60 * 10.16 * 7.55
N7809-500	500	12-36	9	SIP3	11.60 * 10.16 * 7.55
N7812-500	500	15-36	12	SIP3	11.60 * 10.16 * 7.55
N7815-500	500	19-36	15	SIP3	11.60 * 10.16 * 7.55

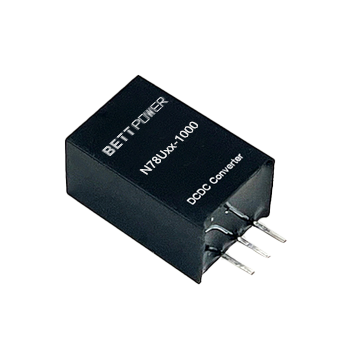

▶ N78Uxx-1000	1000	9～75	3.3,5,6.5,9,12,15,24	SIP3	11.50 * 9.00 * 17.50
N78U03-1000	1000	9～75	3.3	SIP3	11.50 * 9.00 * 17.50
N78U05-1000	1000	9～75	5	SIP3	11.50 * 9.00 * 17.50
N78UX6-1000	1000	9～75	6.5	SIP3	11.50 * 9.00 * 17.50
N78U09-1000	1000	14～75	9	SIP3	11.50 * 9.00 * 17.50
N78U12-1000	1000	17～75	12	SIP3	11.50 * 9.00 * 17.50
N78U15-1000	1000	21～75	15	SIP3	11.50 * 9.00 * 17.50
N78U24-700	700	33～75	24	SIP3	11.50 * 9.00 * 17.50
▶ N78Uxx-1000F	1000	9～75	3.3,5,6.5,9,12,15,24	SIP3	19.00 * 11.50 * 9.00
N78U03-1000F	1000	9～75	3.3	SIP3	19.00 * 11.50 * 9.00
N78U05-1000F	1000	9～75	5	SIP3	19.00 * 11.50 * 9.00
N78UX6-1000F	1000	9～75	6.5	SIP3	19.00 * 11.50 * 9.00
N78U09-1000F	1000	14～75	9	SIP3	19.00 * 11.50 * 9.00
N78U12-1000F	1000	17～75	12	SIP3	19.00 * 11.50 * 9.00
N78U15-1000F	1000	21～75	15	SIP3	19.00 * 11.50 * 9.00
N78U24-700F	700	33～75	24	SIP3	19.00 * 11.50 * 9.00
▶ N78xx-1000	1000	6～36	3.3,5,9,12,15	SIP3	11.60 * 10.16 * 7.55
N7803-1000	1000	6～36	3.3	SIP3	11.60 * 10.16 * 7.55
N7805-1000	1000	8～36	5	SIP3	11.60 * 10.16 * 7.55
N7809-1000	1000	13～36	9	SIP3	11.60 * 10.16 * 7.55
N7812-1000	1000	16～36	12	SIP3	11.60 * 10.16 * 7.55
N7815-1000	1000	20～36	15	SIP3	11.60 * 10.16 * 7.55

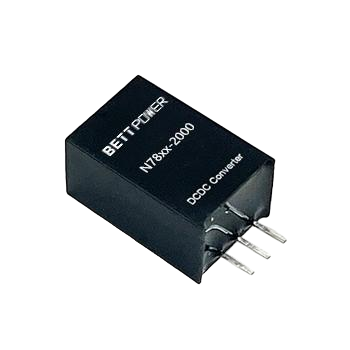

▶ N78xx-2000	2000	6～36	3.3,5,9,12,15	SIP3	11.50 * 9.00 * 17.50
N7803-2000	2000	6～36	3.3	SIP3	11.50 * 9.00 * 17.50
N7805-2000	2000	8～36	5	SIP3	11.50 * 9.00 * 17.50
N7809-2000	2000	13～36	9	SIP3	11.50 * 9.00 * 17.50
N7812-2000	2000	16～36	12	SIP3	11.50 * 9.00 * 17.50
N7815-2000	2000	18～36	15	SIP3	11.50 * 9.00 * 17.50
